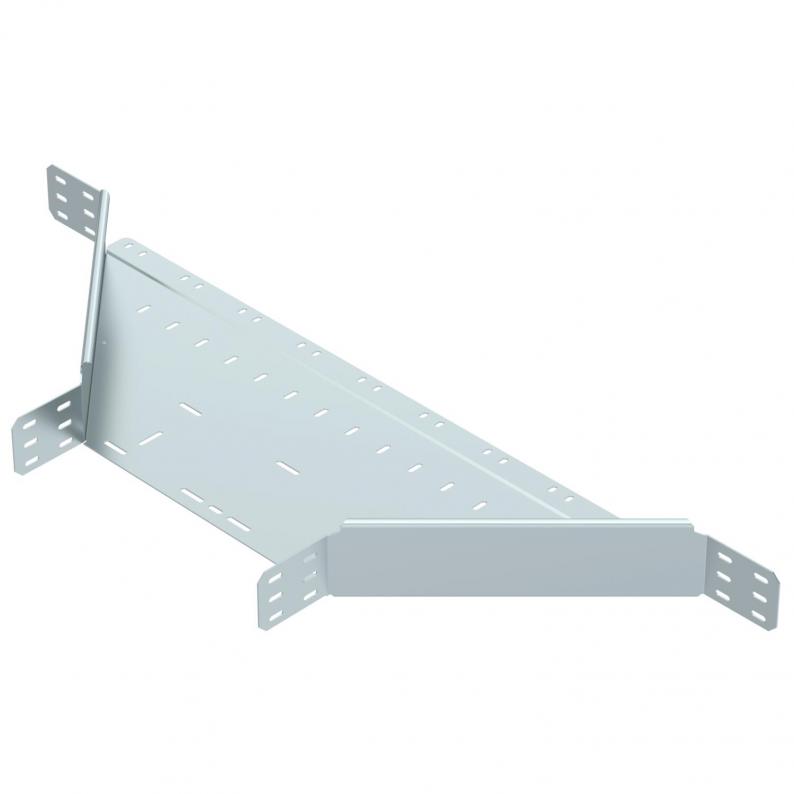

Add-on tee BKRS
Type RAA BKRS 1040 FS
|Item no. 6044624
|EAN 4012197309718
Item no. / Type
Width
Plate thickness
Maintain electrical functions
no
Smallest selling unit: 1 piece
1piece
piece
Description
Add-on tee for a horizontal branch, fitting for BKRS walkable cable tray system. Suitable for mounting in indoor areas. With integrated connector. Fastening material must be ordered separately.
Technical data

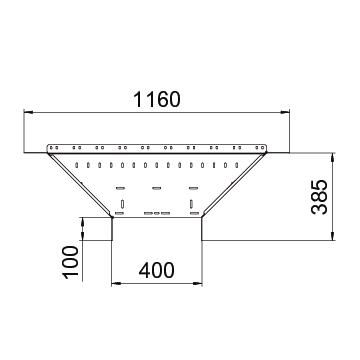

Dimensions
| Length | 424 mm |
|---|---|
| Width | 1162 mm |
| Height | 98 mm |
| Dimension B | 400 mm |
| Dimension R | 280 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| NATO hole pattern | no |
| Material thickness, floor plate | 2 mm |
| Departing width | 400 mm |
| Rail thickness | 2 mm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 120 °C |
| Dimension | 100x400 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 18,8576 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Maintain electrical functions
Plate thickness
Item no.
RAA BKRS 1040 FS
1162
no
2
6044624
RAA BKRS 1050 FS
1262
no
2
6044625
RAA BKRS 1060 FS
1362
no
2
6044626
Width
RAA BKRS 1040 FS
Item no.
6044624
Width
1162
Maintain electrical functions
no
Plate thickness
2
RAA BKRS 1050 FS
Item no.
6044625
Width
1262
Maintain electrical functions
no
Plate thickness
2
RAA BKRS 1060 FS
Item no.
6044626
Width
1362
Maintain electrical functions
no
Plate thickness
2
