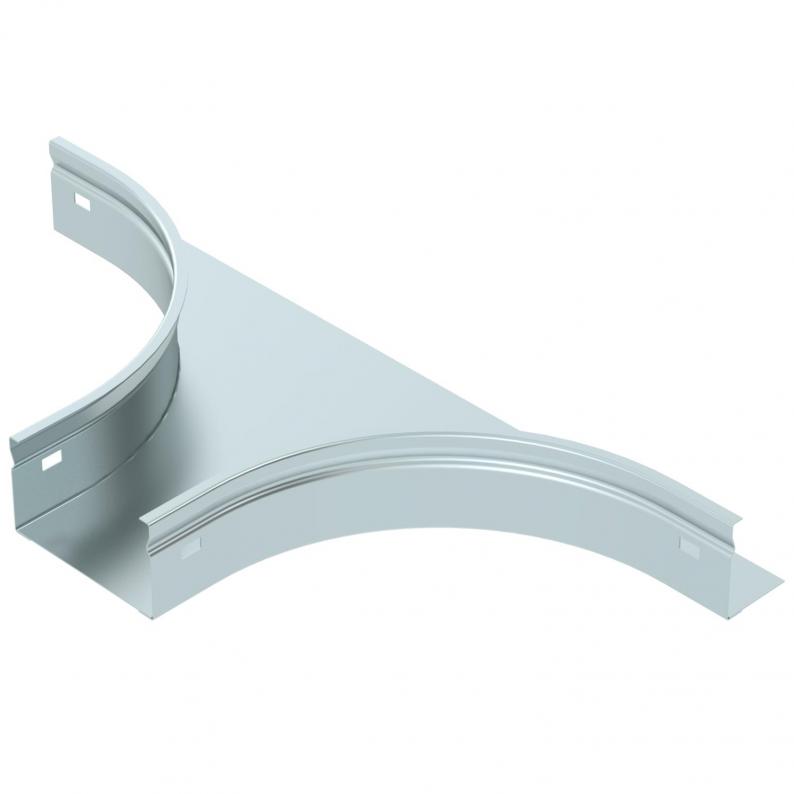

Add-on tee 60, with cover FS
Type GKSAA 610 FS
|Item no. 6480431
|EAN 4012195488637
Item no. / Type
Width
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
Add-on tee with cover for all GKS... cable tray types of 60 mm side height.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Dimension | 60x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Colour
Item no.
GKSAA 610 FS
100
zinc
6480431
GKSAA 615 FS
150
zinc
6480432
GKSAA 620 FS
200
zinc
6480433
GKSAA 630 FS
300
zinc
6480434
GKSAA 640 FS
400
zinc
6480435
GKSAA 650 FS
500
zinc
6480436
