Add-on tee 60 FS
Type RAA 610 FS
|Item no. 6040403
|EAN 4012196379392
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

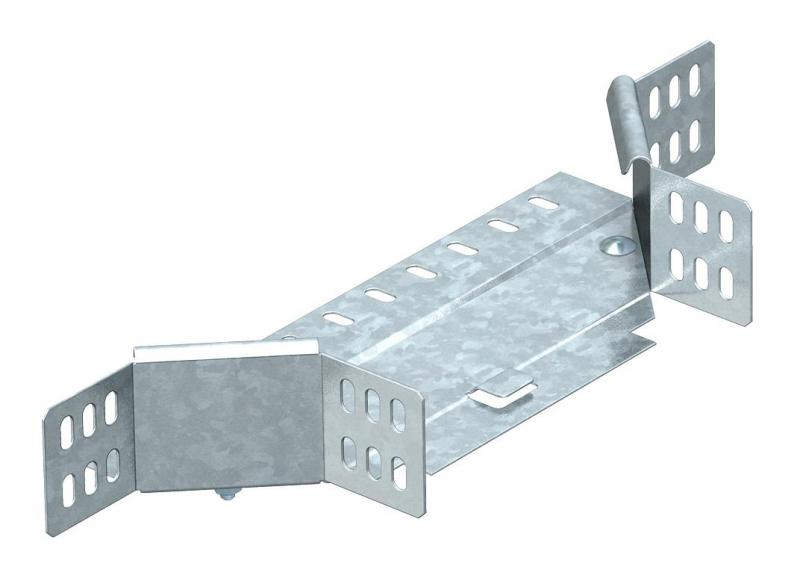

Mounting/branch piece for horizontal and vertical use. For all cable tray types of 60 mm side height.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
Technical data

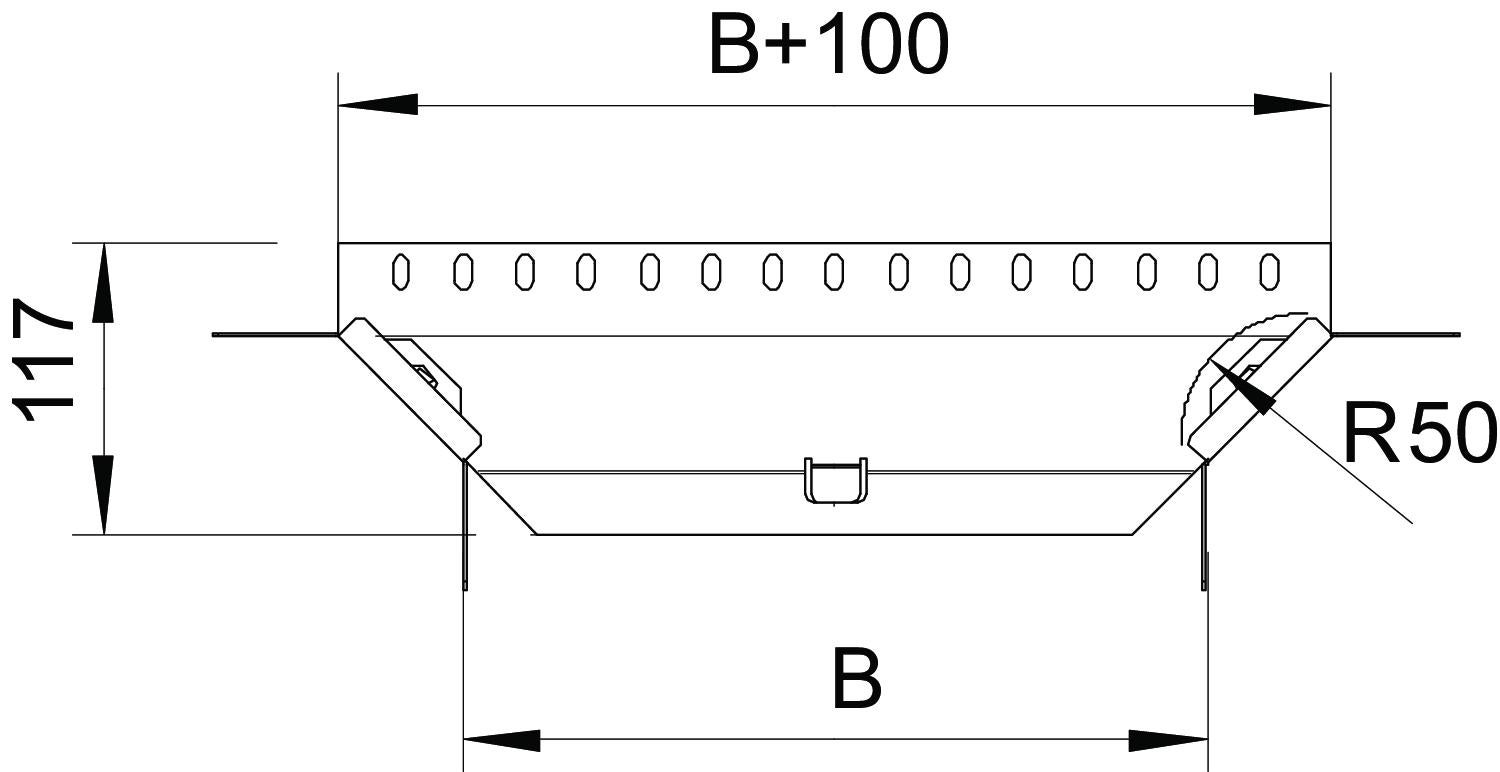

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Material thickness, floor plate | 1 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 60x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Item no.
RAA 610 FS
100
6040403
RAA 615 FS
150
6040411
RAA 620 FS
200
6040438
RAA 630 FS
300
6040446
Width
RAA 610 FS
Item no.
6040403
Width
100
RAA 615 FS
Item no.
6040411
Width
150
RAA 620 FS
Item no.
6040438
Width
200
RAA 630 FS
Item no.
6040446
Width
300
