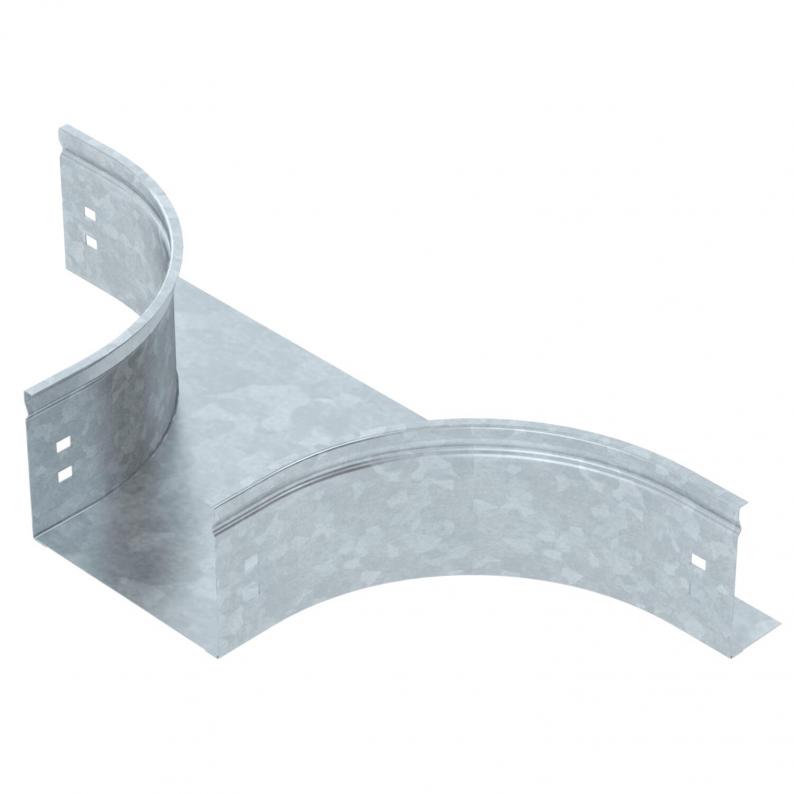

Add-on tee 100, with cover FT
Type GKSAA 115 FT
|Item no. 6483451
|EAN 4012195509134
Item no. / Type
Width
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
Add-on tee with cover for all GKS... cable tray types of 100 mm side height.
Technical data

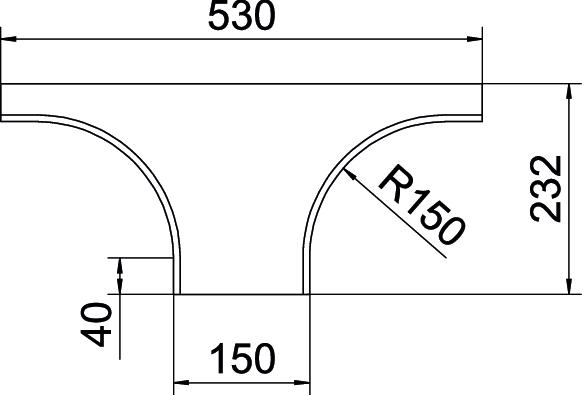

Dimensions
| Width | 150 mm |
|---|---|
| Height | 100 mm |
| Dimension B | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Dimension | 100x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Colour
Item no.
GKSAA 115 FT
150
zinc
6483451
GKSAA 120 FT
200
zinc
6483452
GKSAA 130 FT
300
zinc
6483453
GKSAA 140 FT
400
zinc
6483454
GKSAA 150 FT
500
zinc
6483455
Width
GKSAA 115 FT
Item no.
6483451
Width
150
Colour
zinc
GKSAA 120 FT
Item no.
6483452
Width
200
Colour
zinc
GKSAA 130 FT
Item no.
6483453
Width
300
Colour
zinc
GKSAA 140 FT
Item no.
6483454
Width
400
Colour
zinc
GKSAA 150 FT
Item no.
6483455
Width
500
Colour
zinc
