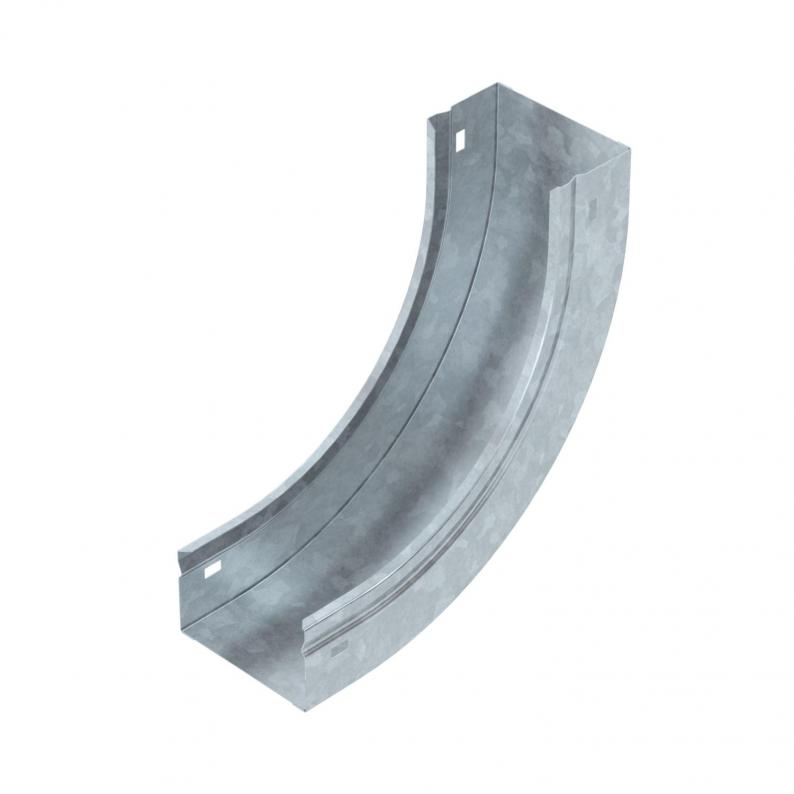

90° vertical bend, rising, 60 FT

90° vertical bend, rising, 60 FT

Type GKSBV 90610S FT
|
Item no. 6483201
|
EAN 4012195507437
Show all variants
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

90° rising vertical bend, for all GKS... cable tray types of 60 mm side height.

  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

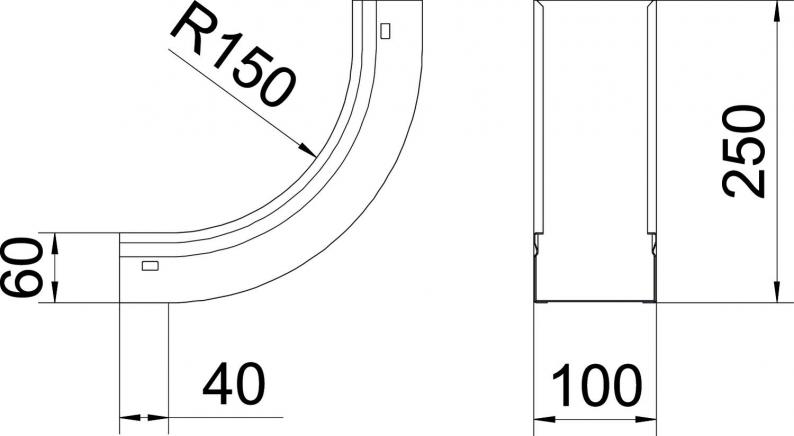

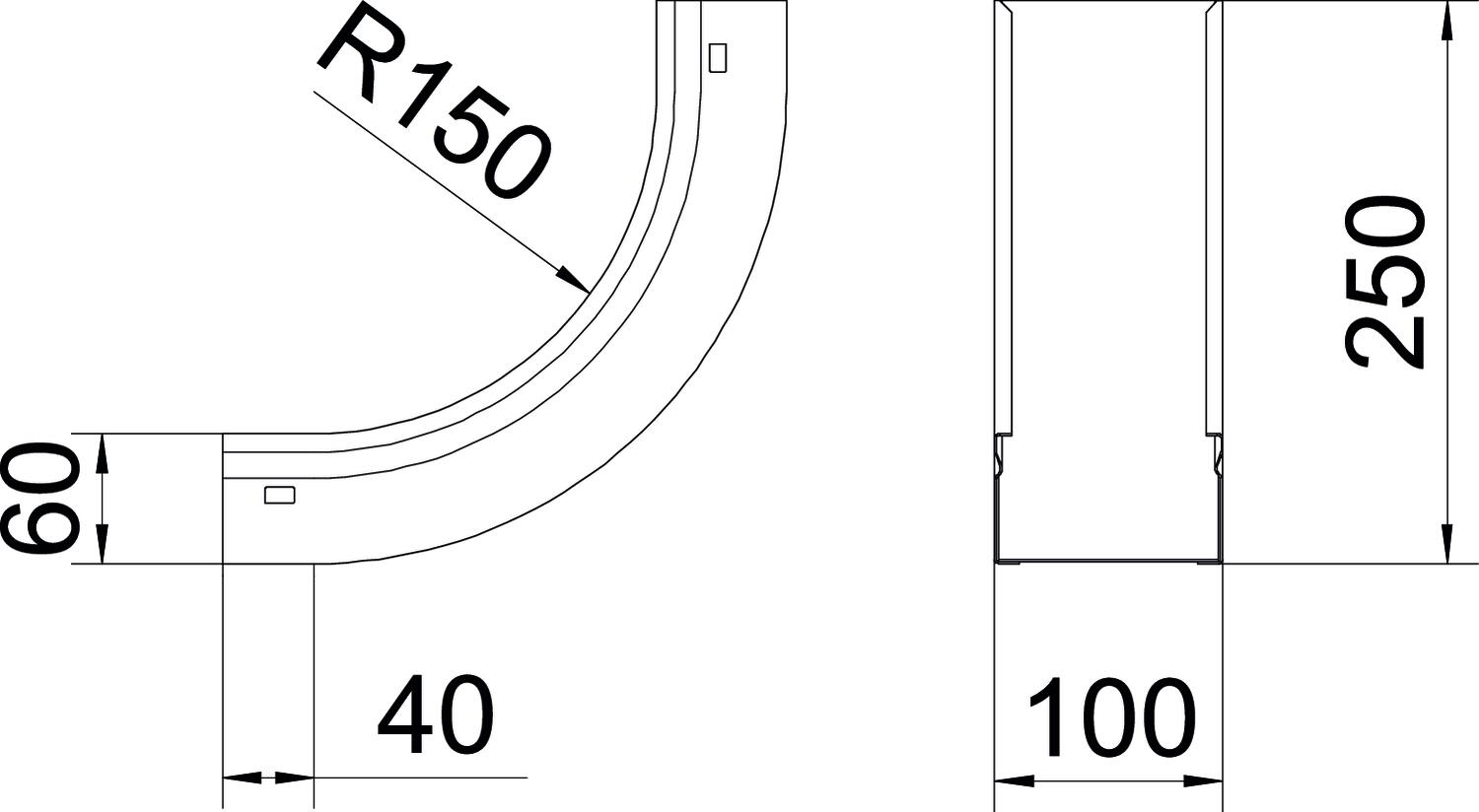

Dimensions

Width100 mm
Height60 mm
Dimension A255 mm
Dimension B100 mm
Dimension H60 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionVertical rising
Dimension60x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
GKSBV 90610S FT
Item no.
6483201
Width
100
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90615S FT
Item no.
6483202
Width
150
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90620S FT
Item no.
6483203
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90630S FT
Item no.
6483204
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90640S FT
Item no.
6483205
Width
400
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90650S FT
Item no.
6483206
Width
500
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
