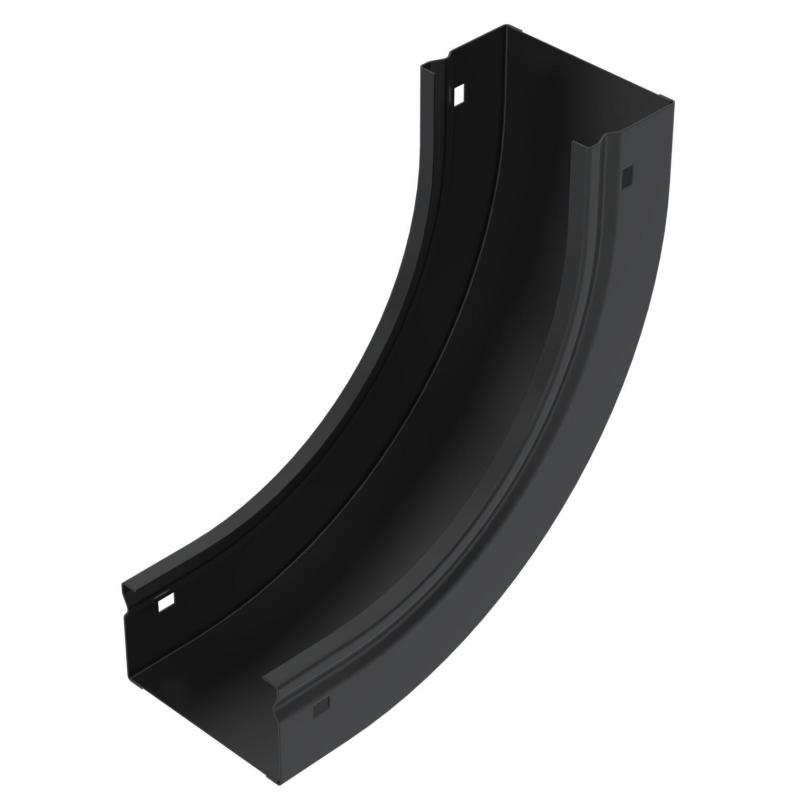

90° vertical bend, rising 60 FSKSW

90° vertical bend, rising 60 FSKSW

Type GKSBV90610SFSKSW
|
Item no. 6487904
|
EAN 4012197465360
Show all variants
Item no. / Type
Width
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

90° rising vertical bend, for all GKS... cable tray types of 60 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

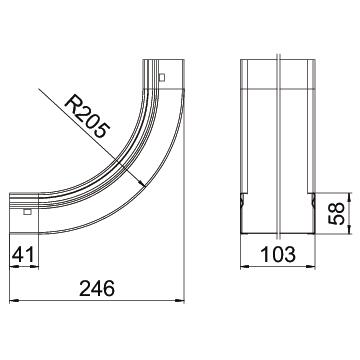

Dimensions

Width100 mm
Height60 mm
Dimension W103 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseno
NATO hole patternno
Material thickness, floor plate0,8 mm
Bend (angle)90°
Change of directionVertical rising
TypeBend, rigid
Rail thickness1 mm
Dimension60x100
SurfacePES50 - Polyester/epoxy
MaterialSteel
ColourJet black; RAL 9005

Downloads

0 selected

Data sheet (1)
Product images (2)
Tender specifications (2)

Variants

Width
GKSBV90610SFSKSW
Item no.
6487904
Width
100
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005
GKSBV90615SFSKSW
Item no.
6487905
Width
150
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005
GKSBV90620SFSKSW
Item no.
6487906
Width
200
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005
GKSBV90630SFSKSW
Item no.
6487908
Width
300
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005
GKSBV90640SFSKSW
Item no.
6487910
Width
400
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005
GKSBV90650SFSKSW
Item no.
6487912
Width
500
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005
