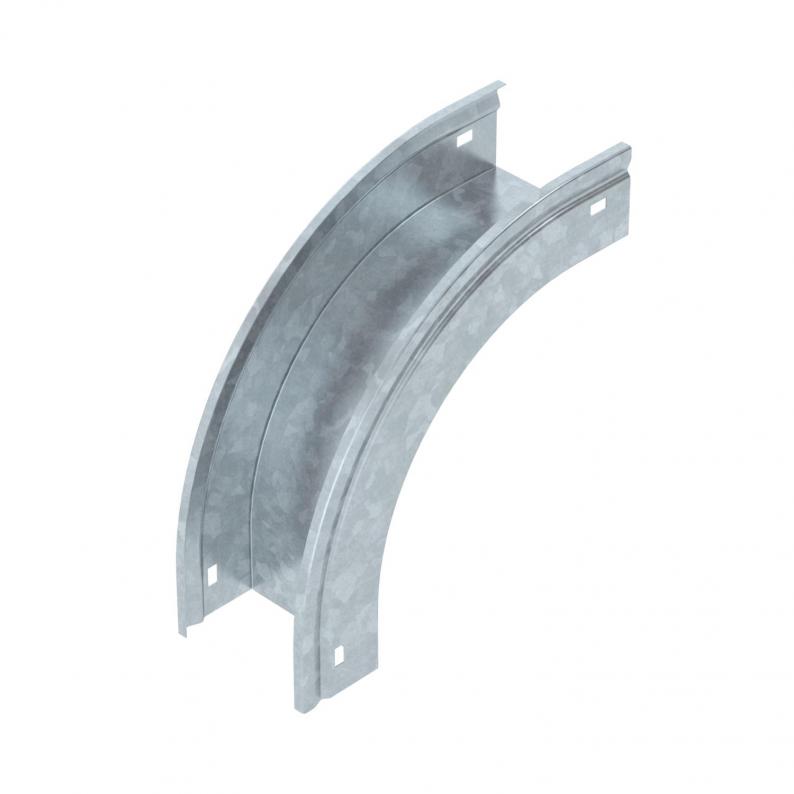

90° vertical bend, falling 60 FT

90° vertical bend, falling 60 FT

Type GKSBV 90610F FT
|
Item no. 6483281
|
EAN 4012195507895
Show all variants
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

90° vertical bend, falling, for all GKS... cable tray types of 60 mm side height.


  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

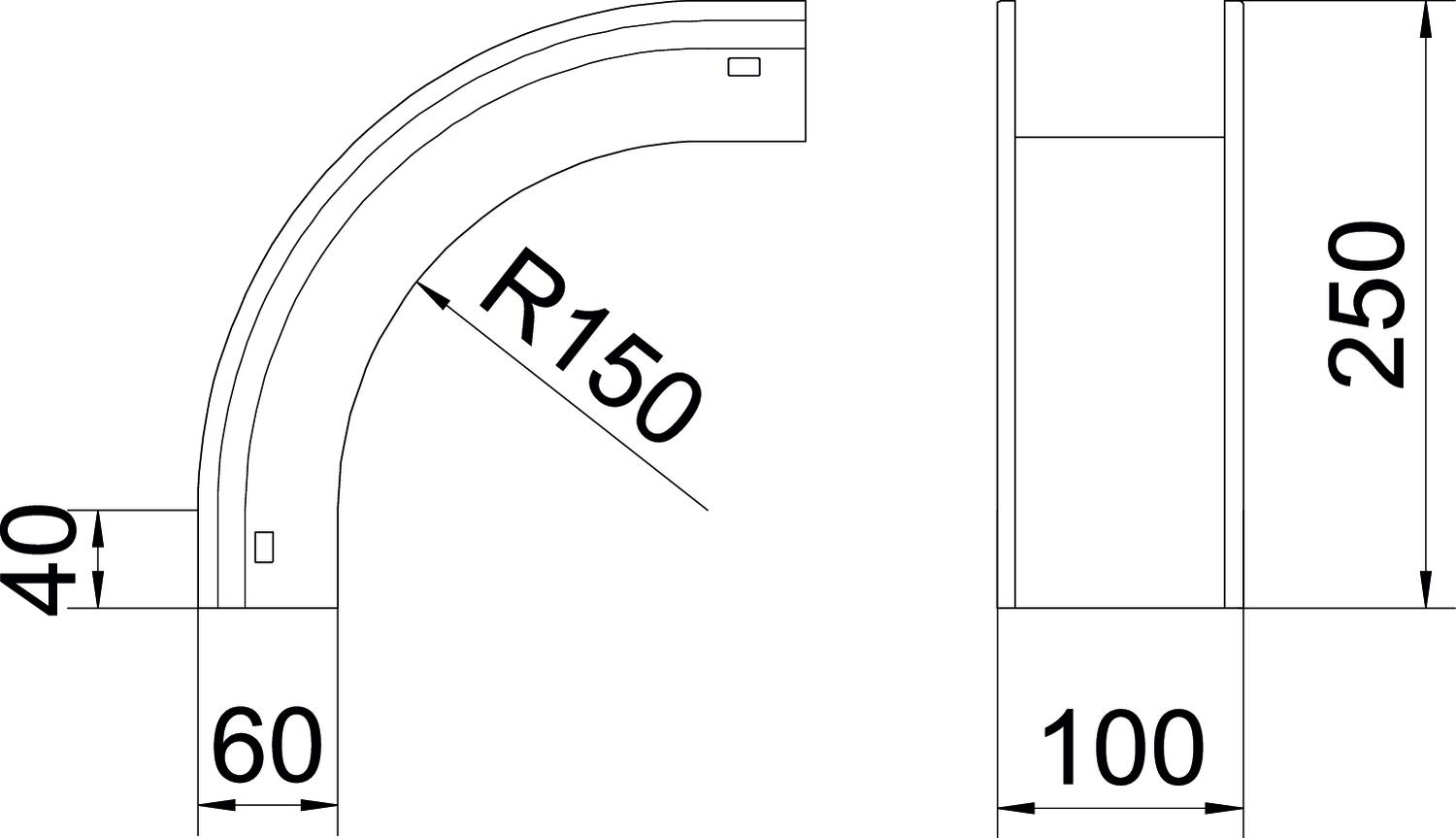

Dimensions

Width100 mm
Height60 mm
Dimension A255 mm
Dimension B100 mm
Dimension H60 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionVertical, falling
Dimension60x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
GKSBV 90610F FT
Item no.
6483281
Width
100
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90615F FT
Item no.
6483282
Width
150
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90620F FT
Item no.
6483283
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90630F FT
Item no.
6483284
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90640F FT
Item no.
6483285
Width
400
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90650F FT
Item no.
6483286
Width
500
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
