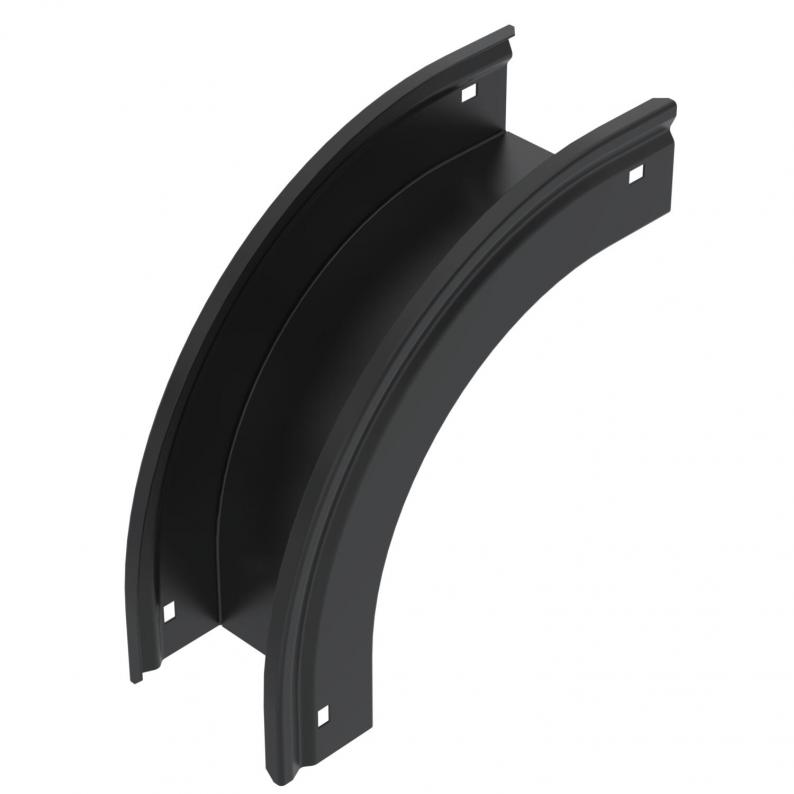

90° vertical bend, falling 60 FSKSW

90° vertical bend, falling 60 FSKSW

Type GKSBV90610FFSKSW
|
Item no. 6487916
|
EAN 4012197465605
Show all variants
Item no. / Type
Width
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

90° vertical bend, falling, for all GKS... cable tray types of 60 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

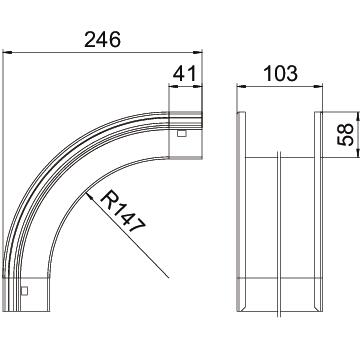

Dimensions

Width100 mm
Height60 mm
Dimension W103 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseno
NATO hole patternno
Material thickness, floor plate0,8 mm
Bend (angle)90°
Change of directionVertical, falling
TypeBend, rigid
Rail thickness1 mm
Dimension60x100
SurfacePES50 - Polyester/epoxy
MaterialSteel
ColourJet black; RAL 9005

Downloads

0 selected

Data sheet (1)
Product images (2)
Tender specifications (2)

Variants

Width
GKSBV90610FFSKSW
Item no.
6487916
Width
100
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005
GKSBV90615FFSKSW
Item no.
6487917
Width
150
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005
GKSBV90620FFSKSW
Item no.
6487918
Width
200
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005
GKSBV90630FFSKSW
Item no.
6487920
Width
300
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005
GKSBV90640FFSKSW
Item no.
6487922
Width
400
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005
GKSBV90650FFSKSW
Item no.
6487924
Width
500
Surface
PES50 - Polyester/epoxy
Material
Steel
Colour
Jet black; RAL 9005
