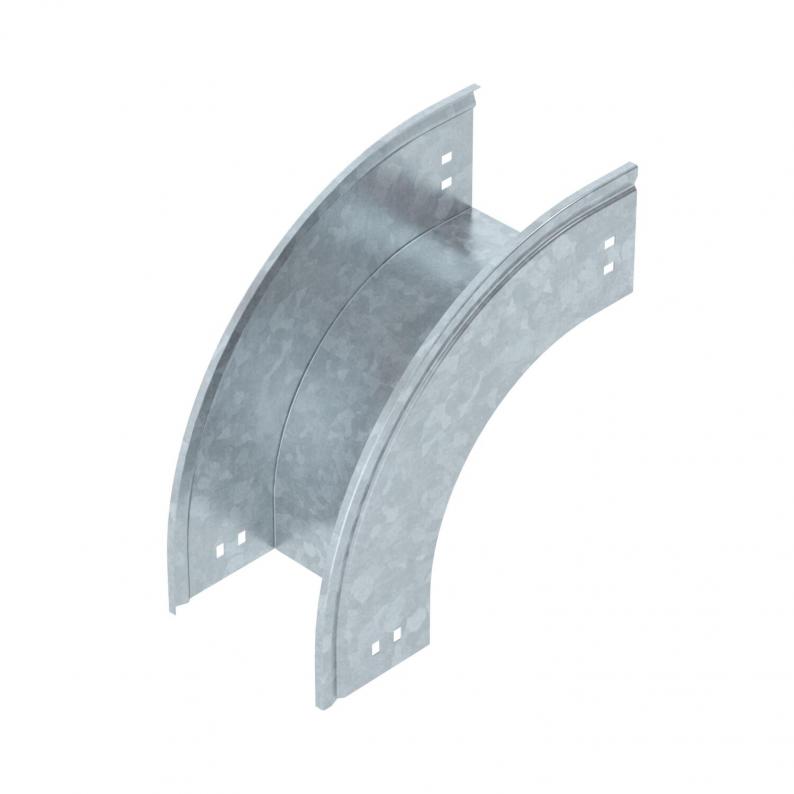

90° vertical bend, falling 100 FT
Type GKSBV 90115F FT
|Item no. 6483302
|EAN 4012195508021
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
90° vertical bend, falling, for all GKS... cable tray types of 100 mm side height.
Technical data

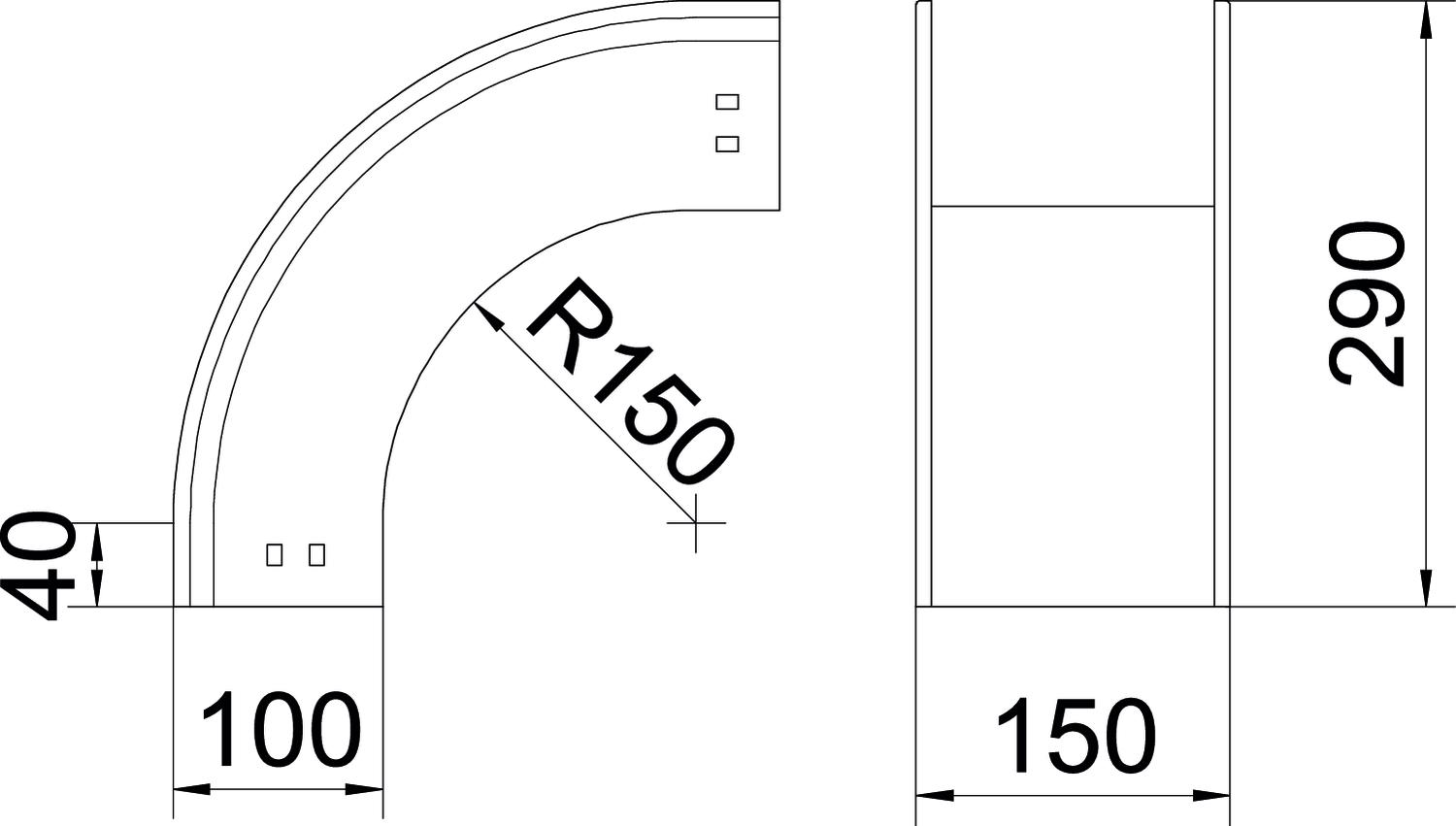

Dimensions
| Width | 150 mm |
|---|---|
| Height | 100 mm |
| Dimension A | 295 mm |
| Dimension B | 150 mm |
| Dimension H | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Vertical, falling |
| Dimension | 100x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
GKSBV 90115F FT
150
Hot-dip galvanised
Steel
zinc
6483302
GKSBV 90120F FT
200
Hot-dip galvanised
Steel
zinc
6483303
GKSBV 90130F FT
300
Hot-dip galvanised
Steel
zinc
6483304
GKSBV 90140F FT
400
Hot-dip galvanised
Steel
zinc
6483305
GKSBV 90150F FT
500
Hot-dip galvanised
Steel
zinc
6483306
