90° bend 85 FT
Type RB 90 840 FT
|Item no. 7126417
|EAN 4012196248056
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

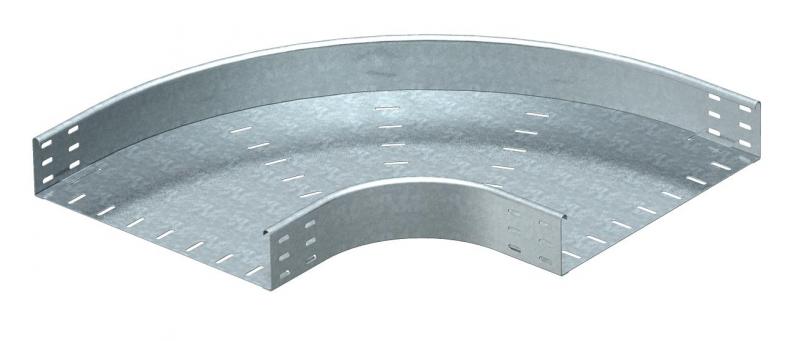

90° bend, horizontal, for all cable tray types of 85 mm side height.
Fastening materials should be ordered separately.
Technical data

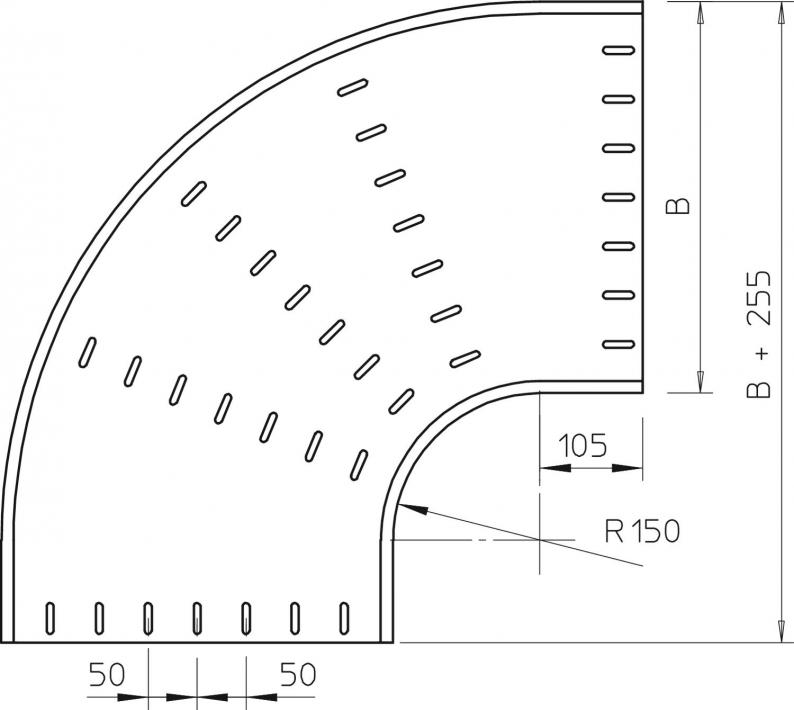

Dimensions
| Width | 400 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 400 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Dimension | 85x400 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
piece
Variants
Type
Width
Surface
Material
Item no.
RB 90 840 FT
400
Hot-dip galvanised
Steel
7126417
RB 90 850 FT
500
Hot-dip galvanised
Steel
7126514
RB 90 860 FT
600
Hot-dip galvanised
Steel
7126611
Width
RB 90 840 FT
Item no.
7126417
Width
400
Surface
Hot-dip galvanised
Material
Steel
RB 90 850 FT
Item no.
7126514
Width
500
Surface
Hot-dip galvanised
Material
Steel
RB 90 860 FT
Item no.
7126611
Width
600
Surface
Hot-dip galvanised
Material
Steel
