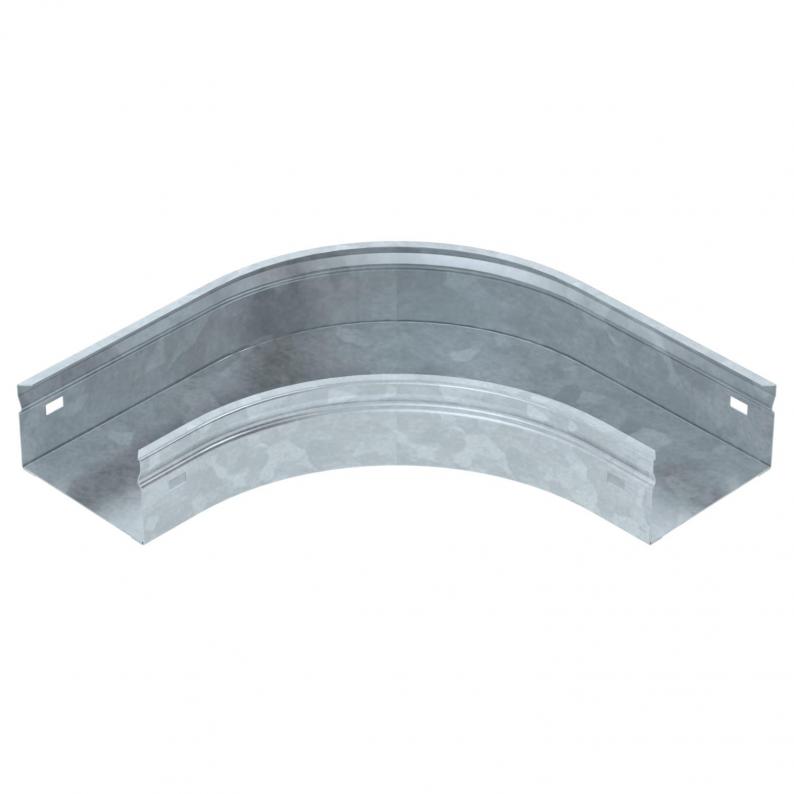

90° bend 60, horizontal Ft

90° bend 60, horizontal Ft

Type GKSB 90 610 FT
|
Item no. 6483121
|
EAN 4012195506775
Show all variants
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

90° bend, horizontal, for all cable tray types of the series GKS... of 60 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 60 mm

Technical data

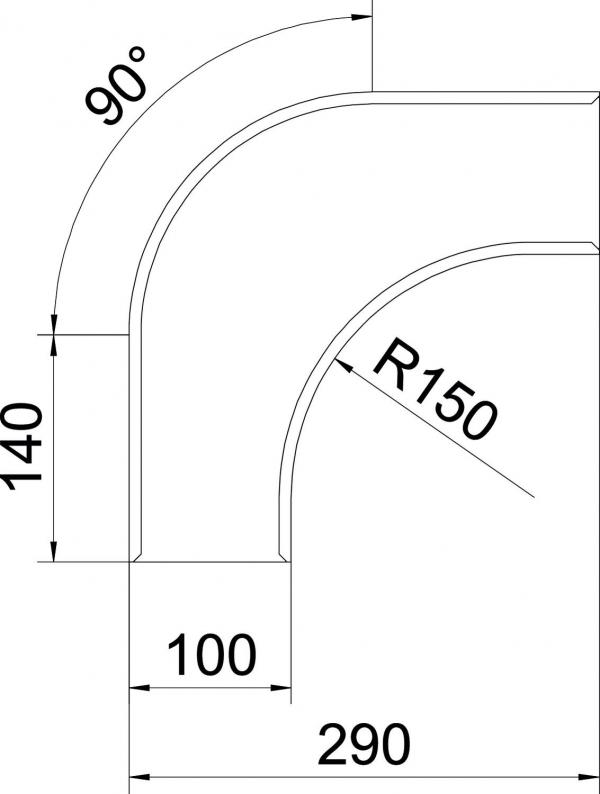

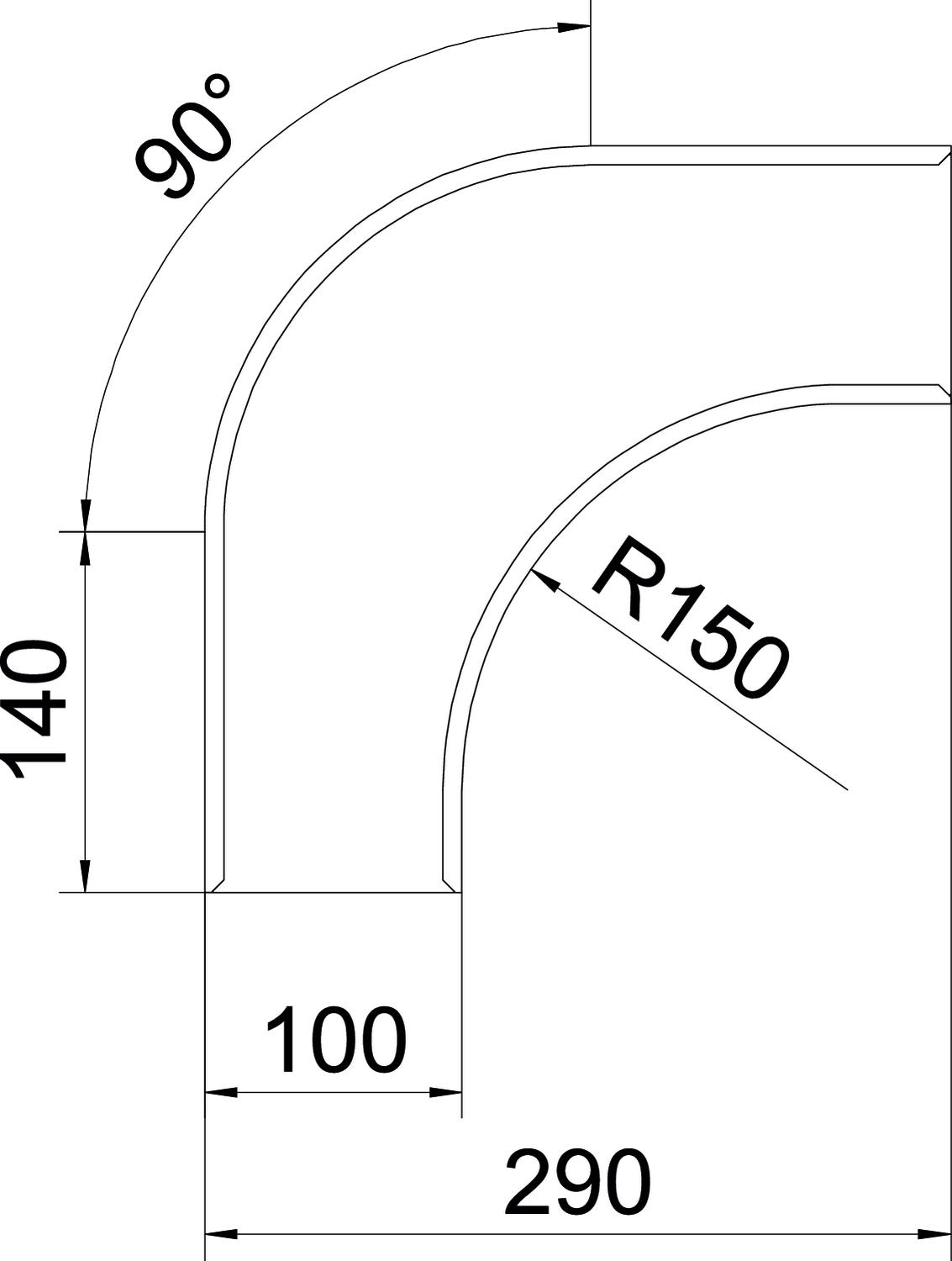

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm
Dimension R150 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionHorizontal
TypeBend, rigid
Dimension60x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
GKSB 90 610 FT
Item no.
6483121
Width
100
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSB 90 615 FT
Item no.
6483122
Width
150
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSB 90 620 FT
Item no.
6483123
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSB 90 630 FT
Item no.
6483124
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSB 90 640 FT
Item no.
6483125
Width
400
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSB 90 650 FT
Item no.
6483126
Width
500
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
