90° bend 60 FT
Type RB 90 605 FT
|Item no. 7124438
|EAN 4012196688647
Item no. / Type
7124438 / RB 90 605 FT
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description

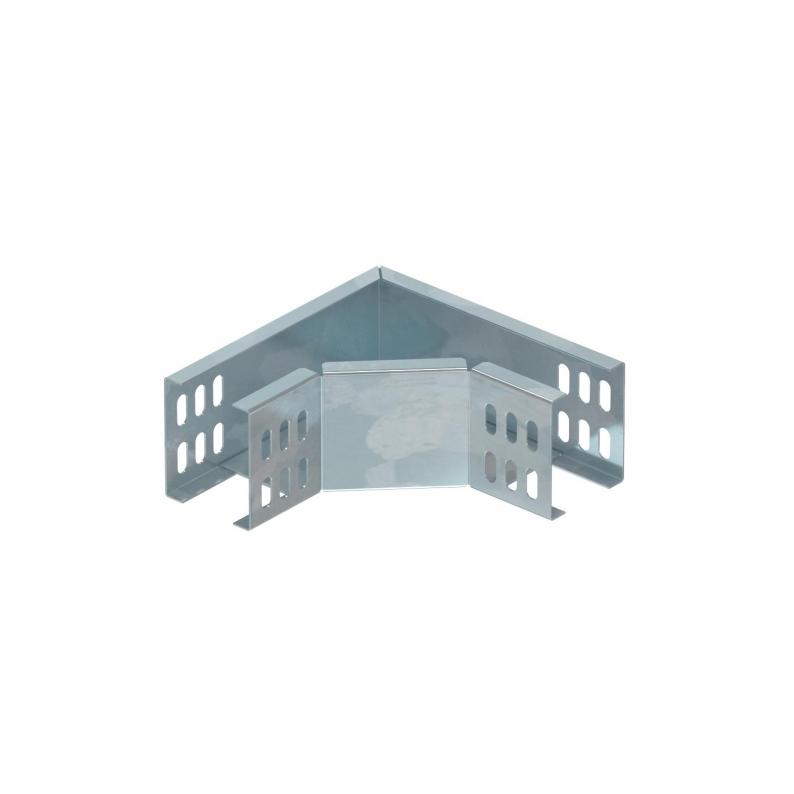

90° bend for horizontal routing of cable trays, type RKS 605.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
The 50 mm width has a rectangle shape and does not correspond to the image.
Technical data

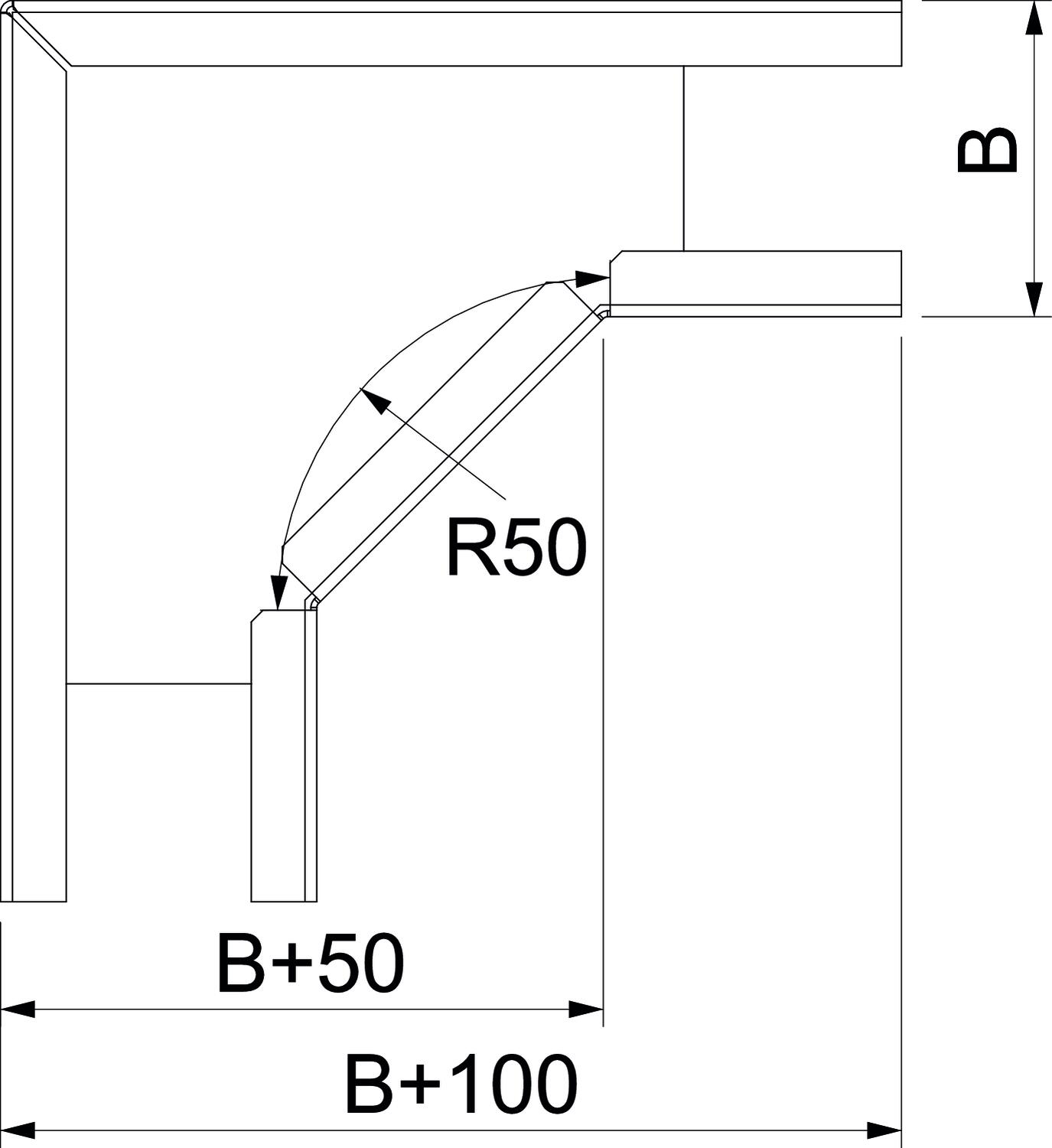

Dimensions
| Width | 50 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 50 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Type | Bend, rigid |
| Dimension | 60x50 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2429 kg CO2e / 1 Piece |
