90° bend 50 FS
Type LB 90 520 VS FS
|Item no. 6487212
|EAN 4012196512737
Item no. / Type
Width
Rail thickness
Smallest selling unit: 1 piece
1piece
piece
Description

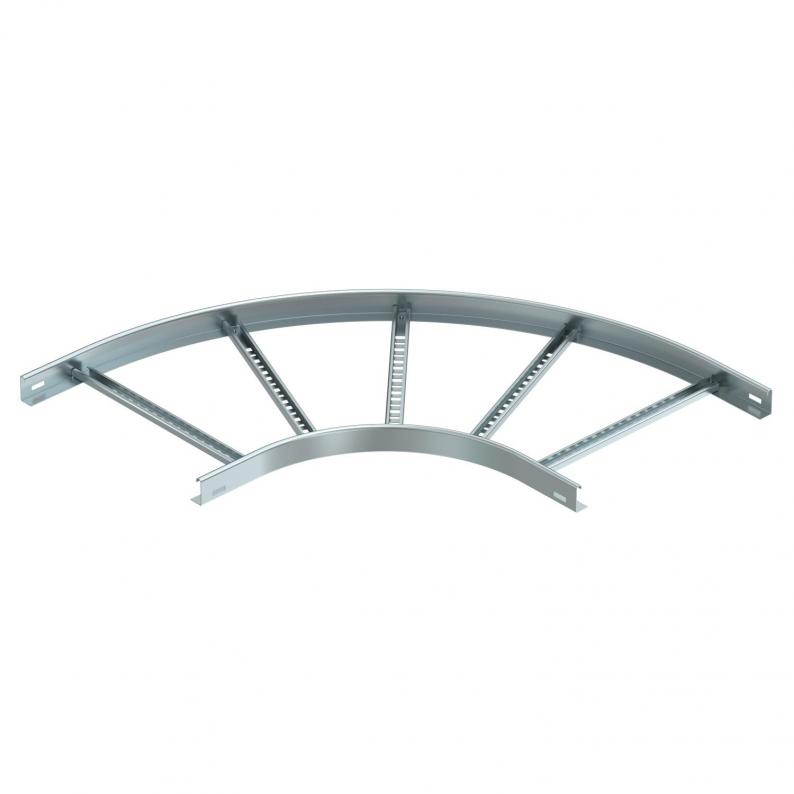

90° horizontal bend, with intelligent VS rung, for all cable ladder types of 50 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Width | 200 mm |
|---|---|
| Height | 50 mm |
Technical data
| Bend (angle) | 90° |
|---|---|
| Change of direction | Horizontal |
| Rail thickness | 1,5 mm |
| Dimension | 50x200 R300 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Rail thickness
Item no.
LB 90 520 VS FS
200
1,5
6487212
LB 90 530 VS FS
300
1,5
6487214
LB 90 545 VS FS
450
1,5
6487216
LB 90 560 VS FS
600
1,5
6487218
Width
LB 90 520 VS FS
Item no.
6487212
Width
200
Rail thickness
1,5
LB 90 530 VS FS
Item no.
6487214
Width
300
Rail thickness
1,5
LB 90 545 VS FS
Item no.
6487216
Width
450
Rail thickness
1,5
LB 90 560 VS FS
Item no.
6487218
Width
600
Rail thickness
1,5
