90° bend 110 FT
Type RB 90 140 FT
|Item no. 7127413
|EAN 4012196248414
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description

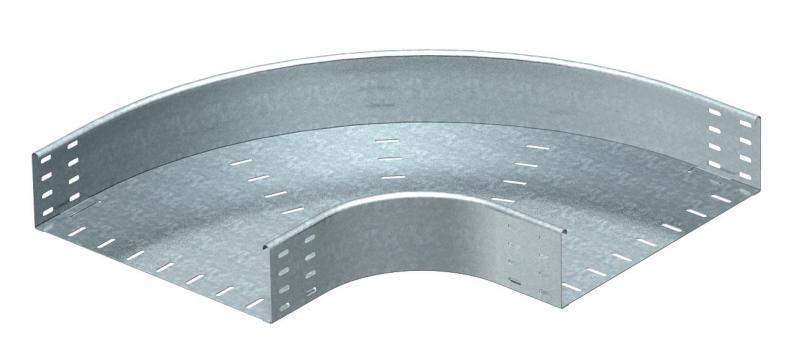

90° bend, horizontal, for all cable tray types of 110 mm side height.
Fastening materials should be ordered separately.
Technical data

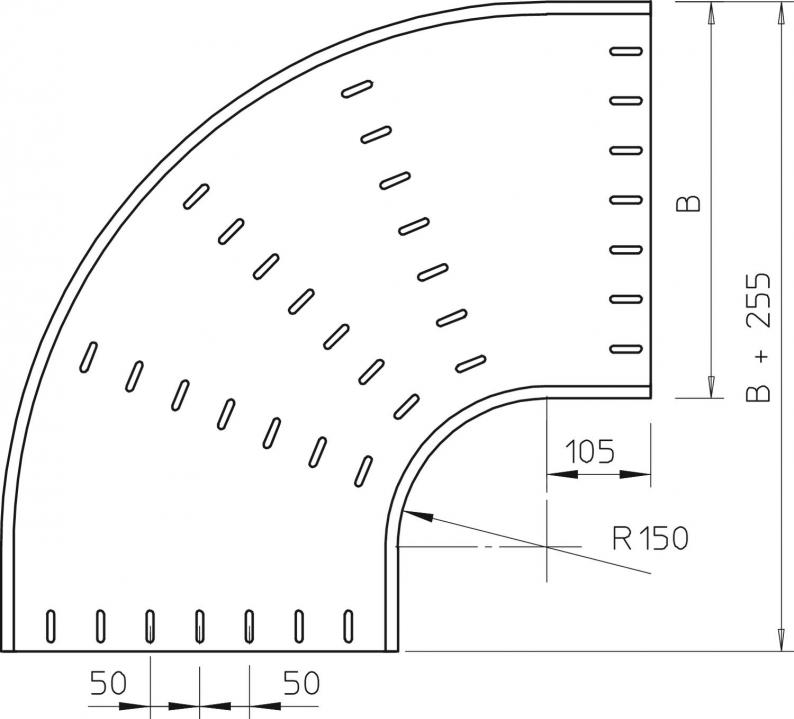

Dimensions
| Width | 400 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 400 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| With cover | no |
| Dimension | 110x400 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Item no.
RB 90 140 FT
400
Hot-dip galvanised
Steel
7127413
RB 90 150 FT
500
Hot-dip galvanised
Steel
7127499
Width
RB 90 140 FT
Item no.
7127413
Width
400
Surface
Hot-dip galvanised
Material
Steel
RB 90 150 FT
Item no.
7127499
Width
500
Surface
Hot-dip galvanised
Material
Steel
