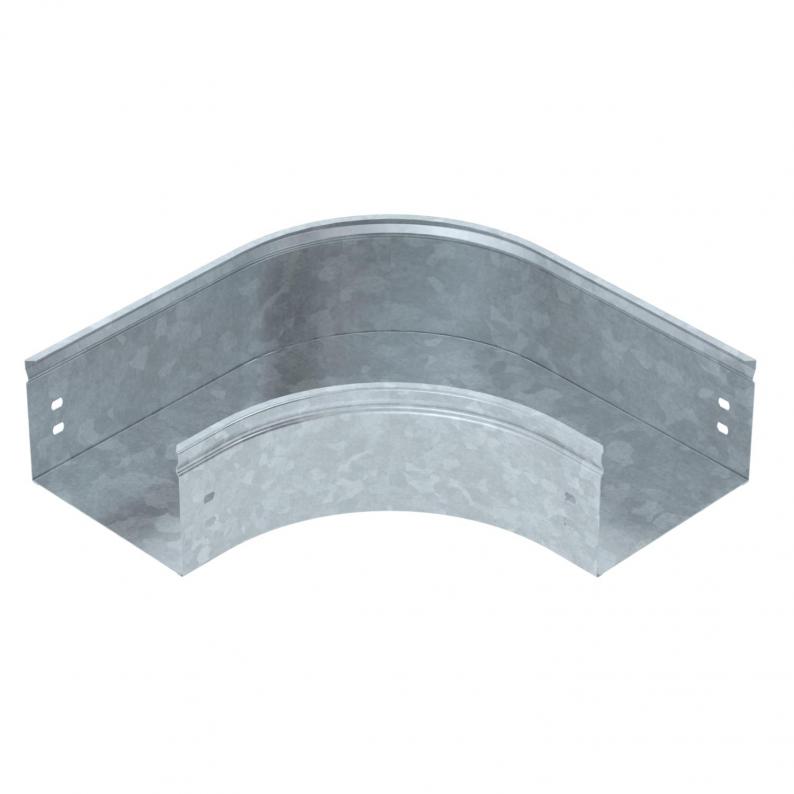

90° bend 100 FT, horizontal
Type GKSB 90 115 FT
|Item no. 6483142
|EAN 4012195506911
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
90° bend, horizontal, for all cable tray types of the series GKS... of 100 mm side height.
Technical data
Dimensions
| Width | 150 mm |
|---|---|
| Height | 100 mm |
| Dimension B | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Dimension | 100x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
GKSB 90 115 FT
150
Hot-dip galvanised
Steel
zinc
6483142
GKSB 90 120 FT
200
Hot-dip galvanised
Steel
zinc
6483143
GKSB 90 130 FT
300
Hot-dip galvanised
Steel
zinc
6483144
GKSB 90 140 FT
400
Hot-dip galvanised
Steel
zinc
6483145
GKSB 90 150 FT
500
Hot-dip galvanised
Steel
zinc
6483146
