50 FT straight connector
Type LVG 50 FT
|Item no. 6487325
|EAN 4012196513222
Item no. / Type
6487325 / LVG 50 FT
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 10 piece
10piece
piece
Description

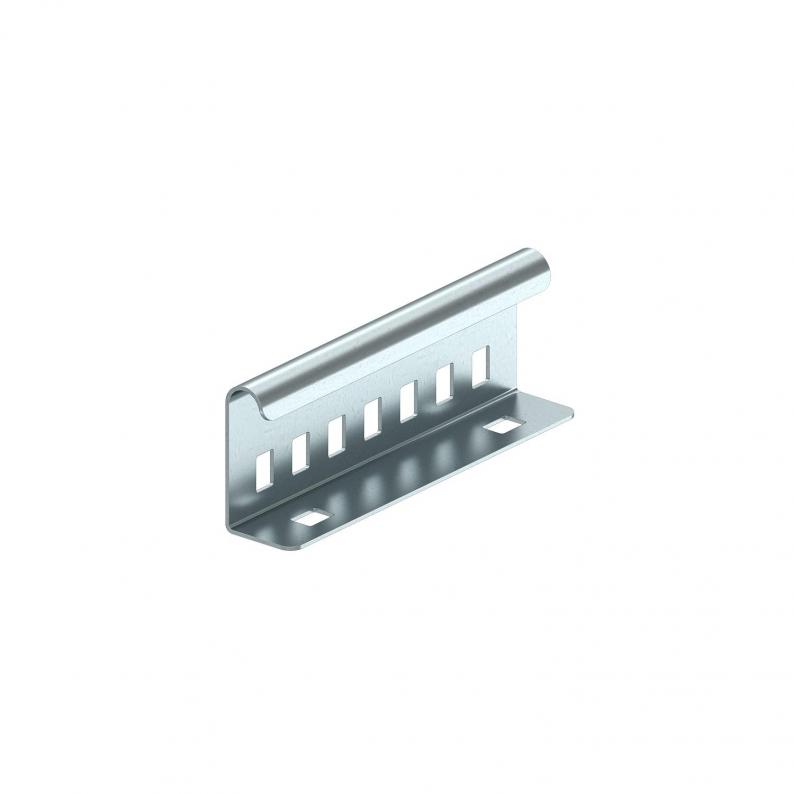

Straight connector as external connector to connect cable ladders and fittings with a side height of 50 mm and continuous side perforation.
Technical data

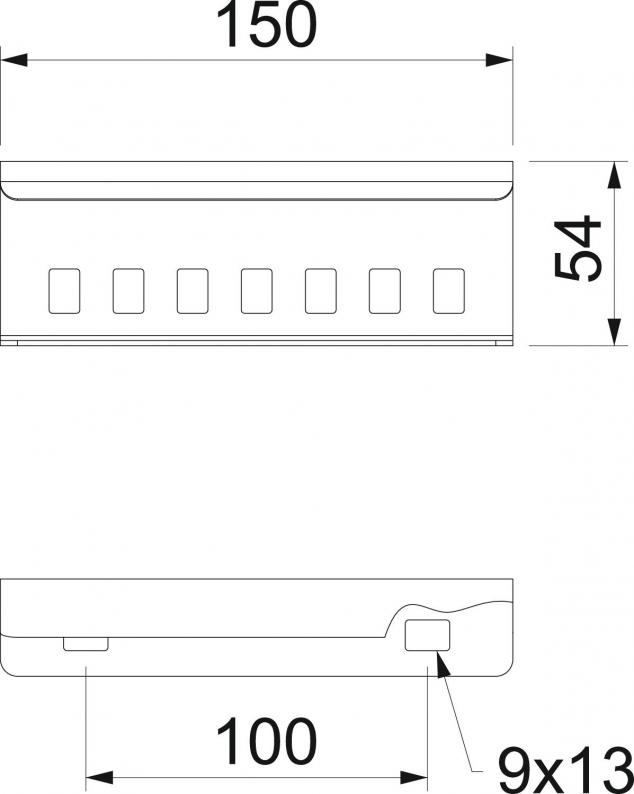

Dimensions
| Length | 150 mm |
|---|---|
| Height | 50 mm |
Technical data
| Suitable for cable tray system height | 50 mm |
|---|---|
| Dimension | 50 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
