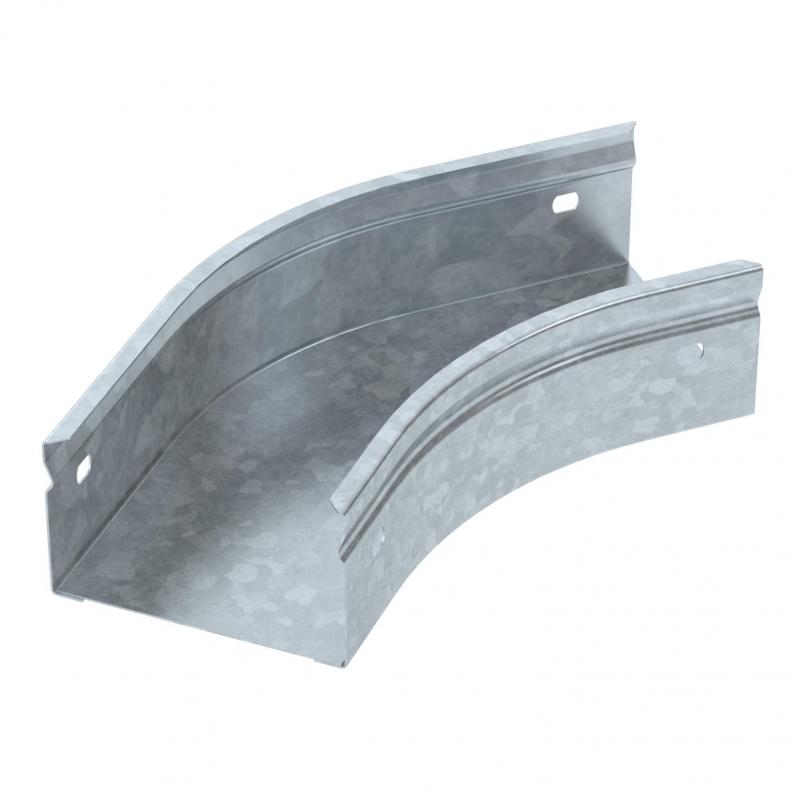

45° bend 60 FT, horizontal
Type GKSB 45 610 FT
|Item no. 6483161
|EAN 4012195507055
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
45° bend, horizontal, for all cable tray types of the series GKS... of 60 mm side height.
Technical data

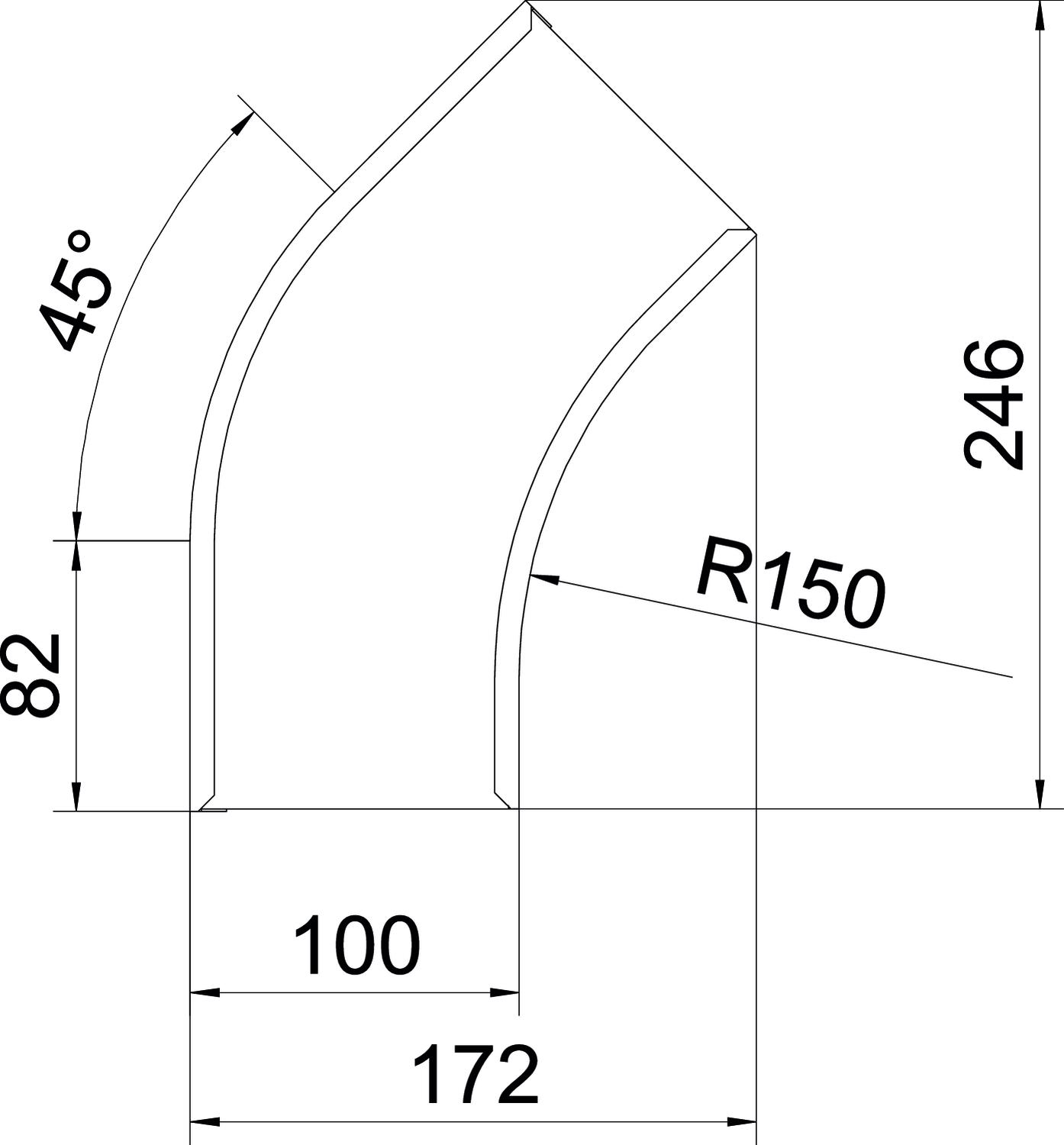

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension A | 250 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 45° |
| Change of direction | Horizontal |
| Dimension | 60x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
GKSB 45 610 FT
100
Hot-dip galvanised
Steel
zinc
6483161
GKSB 45 615 FT
150
Hot-dip galvanised
Steel
zinc
6483162
GKSB 45 620 FT
200
Hot-dip galvanised
Steel
zinc
6483163
GKSB 45 630 FT
300
Hot-dip galvanised
Steel
zinc
6483164
GKSB 45 640 FT
400
Hot-dip galvanised
Steel
zinc
6483165
GKSB 45 650 FT
500
Hot-dip galvanised
Steel
zinc
6483166
