45° bend 60 A2
Type RBU 45 640 A2
|Item no. 7133235
|EAN 4012196253630
Item no. / Type
Width
Surface
Bright, treated
Material
Stainless steel 1.4301
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description

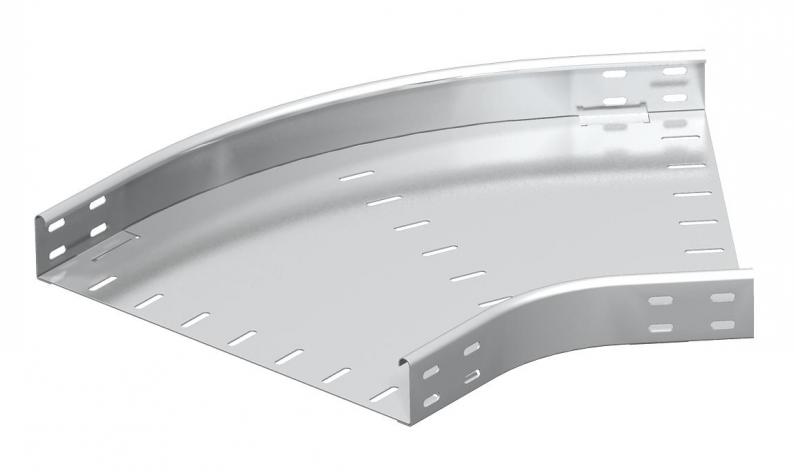

45° bend, horizontal and unperforated, for all cable tray types of 60 mm side height.
Fitting, unperforated, in round design. The interior radius of the fitting is 150 mm. Fastening materials should be ordered separately.
Technical data

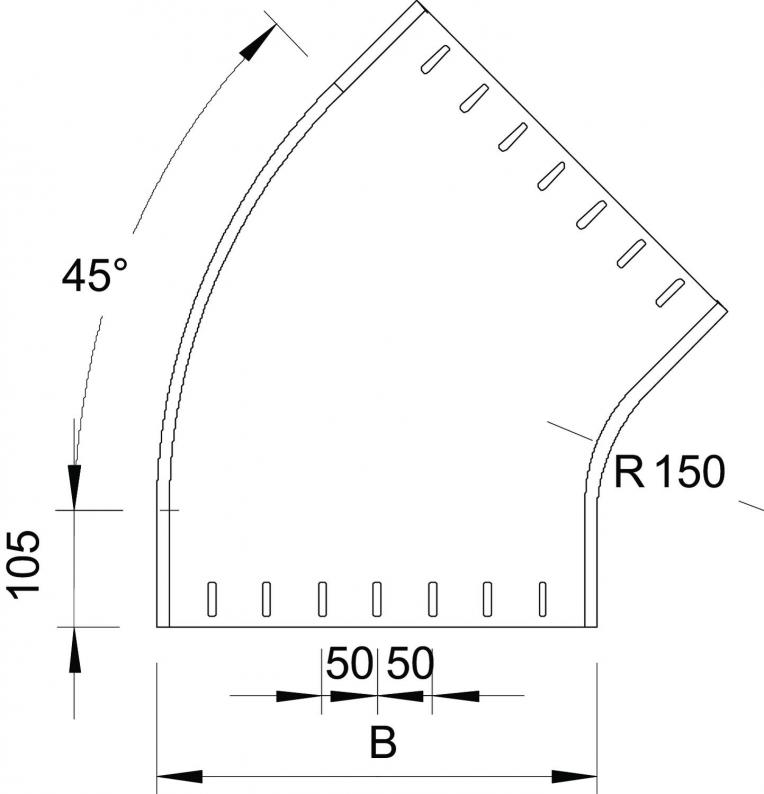

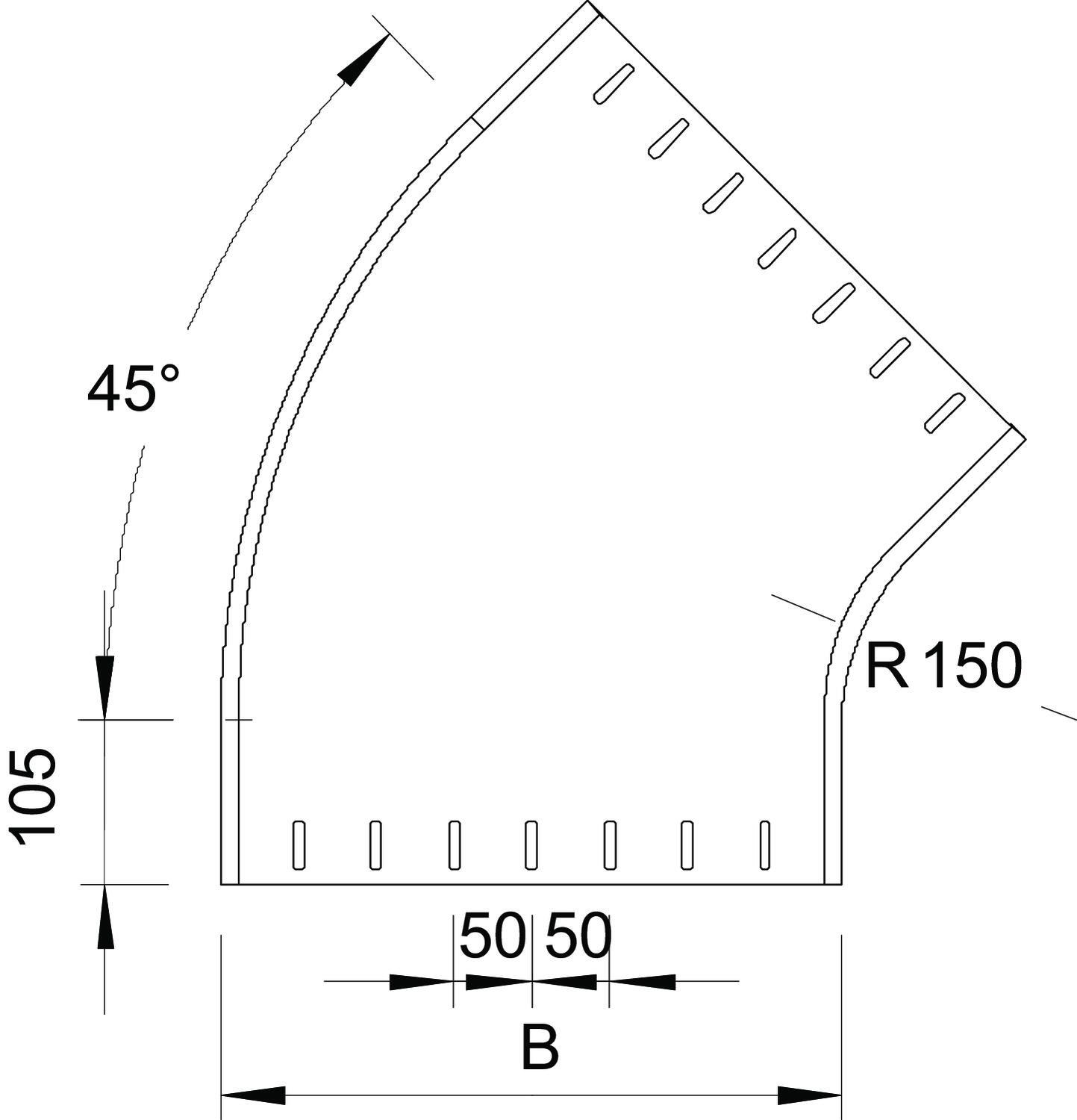

Dimensions
| Width | 400 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 400 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,5 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 45° |
| Change of direction | Horizontal |
| Dimension | 60x400 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RBU 45 640 A2
400
Bright, treated
Stainless steel 1.4301
7133235
RBU 45 650 A2
500
Bright, treated
Stainless steel 1.4301
7133243
RBU 45 660 A2
600
Bright, treated
Stainless steel 1.4301
7133251
Width
RBU 45 640 A2
Item no.
7133235
Width
400
Surface
Bright, treated
Material
Stainless steel 1.4301
RBU 45 650 A2
Item no.
7133243
Width
500
Surface
Bright, treated
Material
Stainless steel 1.4301
RBU 45 660 A2
Item no.
7133251
Width
600
Surface
Bright, treated
Material
Stainless steel 1.4301
