100 FT cross-over
Type GKSK 115 FT
|Item no. 6483522
|EAN 4012195509875
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description

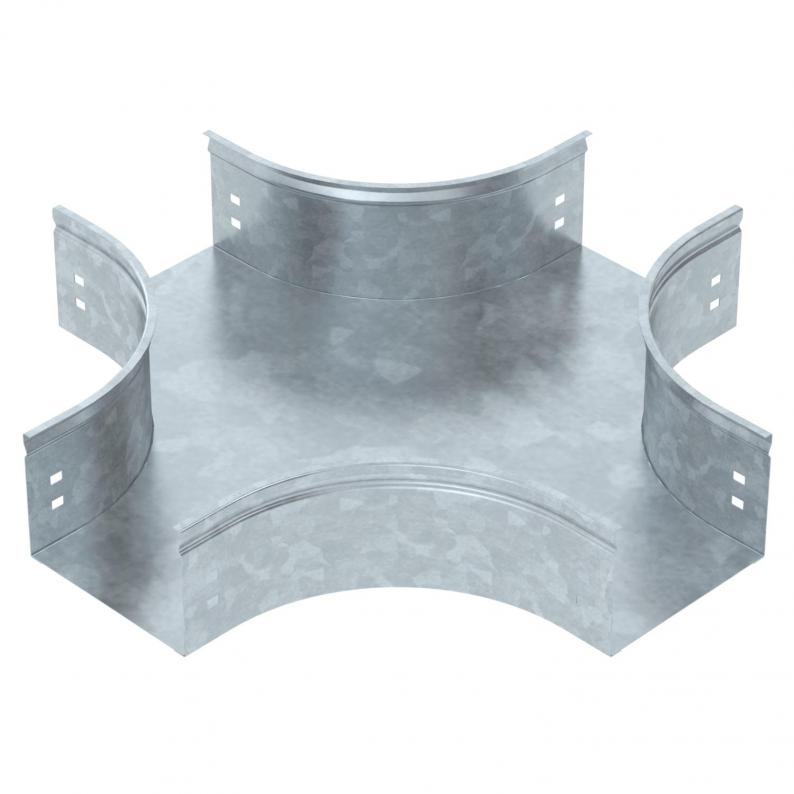

Horizontal cross-over for all GKS... cable tray types with a side height of 100 mm.
Technical data

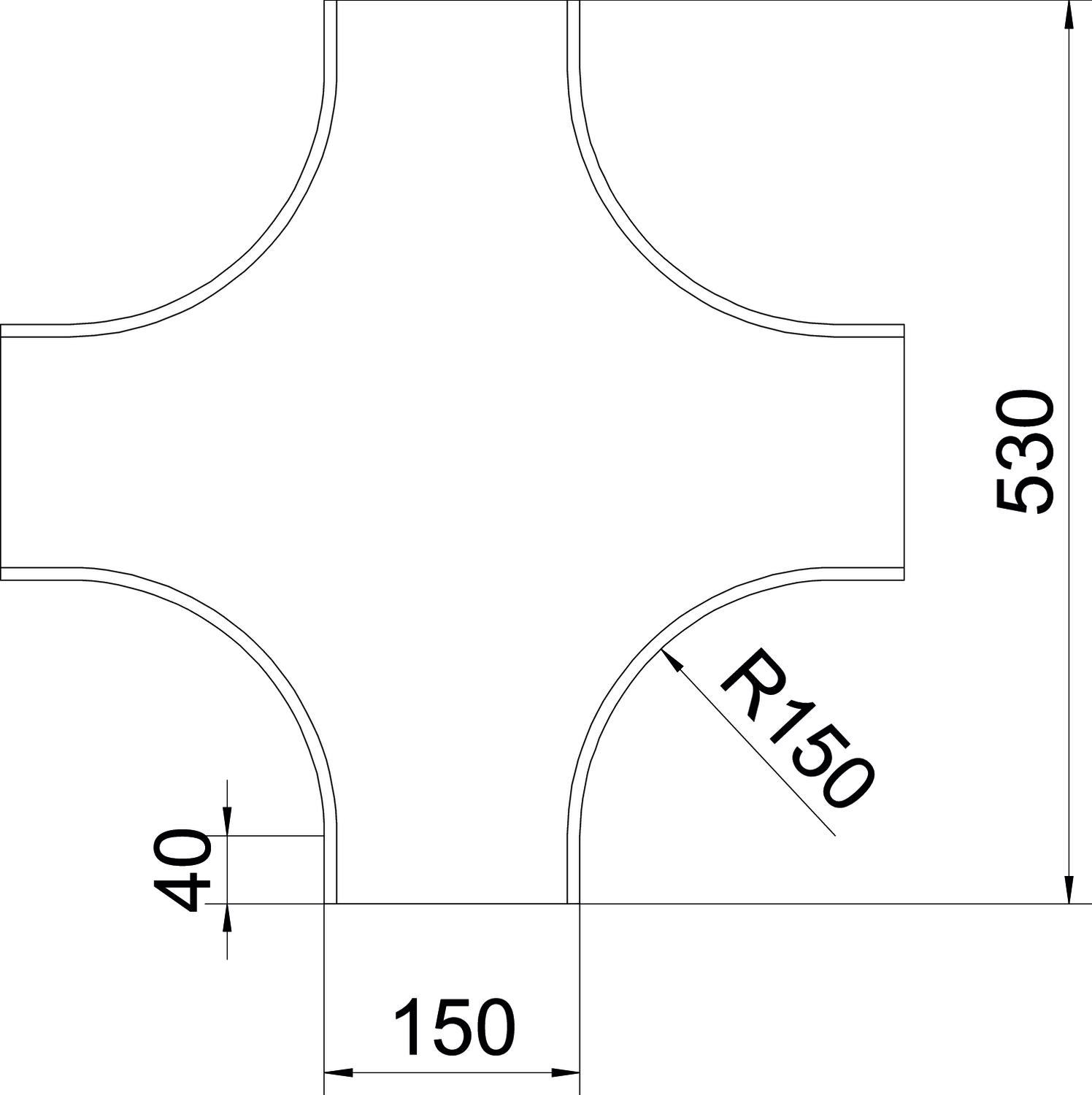

Dimensions
| Width | 150 mm |
|---|---|
| Height | 100 mm |
| Dimension B | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Dimension | 100x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Item no.
GKSK 115 FT
150
6483522
GKSK 120 FT
200
6483523
GKSK 130 FT
300
6483524
GKSK 140 FT
400
6483525
GKSK 150 FT
500
6483526
Width
GKSK 115 FT
Item no.
6483522
Width
150
GKSK 120 FT
Item no.
6483523
Width
200
GKSK 130 FT
Item no.
6483524
Width
300
GKSK 140 FT
Item no.
6483525
Width
400
GKSK 150 FT
Item no.
6483526
Width
500
